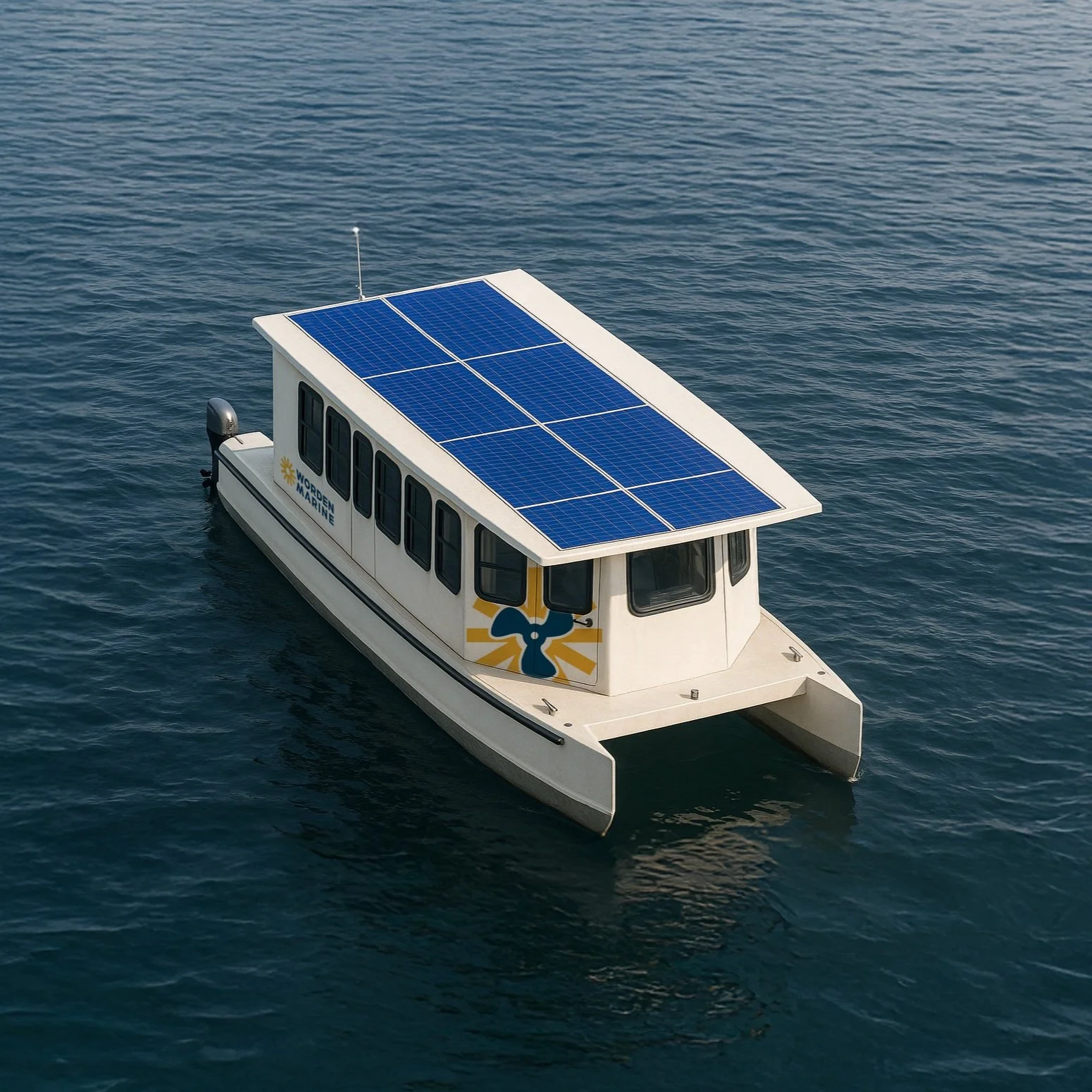

TruSolar40
40’ solar vessel platform for multiple markets and uses.
The TruSolar40 catamaran has a max speed of 16 knots and can run continuously 24/7 at a most economical speed. TruSolar40 has minimum drag and produces a minimum wake—one of the many factors that separate our vessels from traditional planing and semi-planing single-hull vessels. This design allows more room for passengers while maintaining speed and efficiency, in a bold, sleek design while providing a silent and clean new boating experience.
Specifications

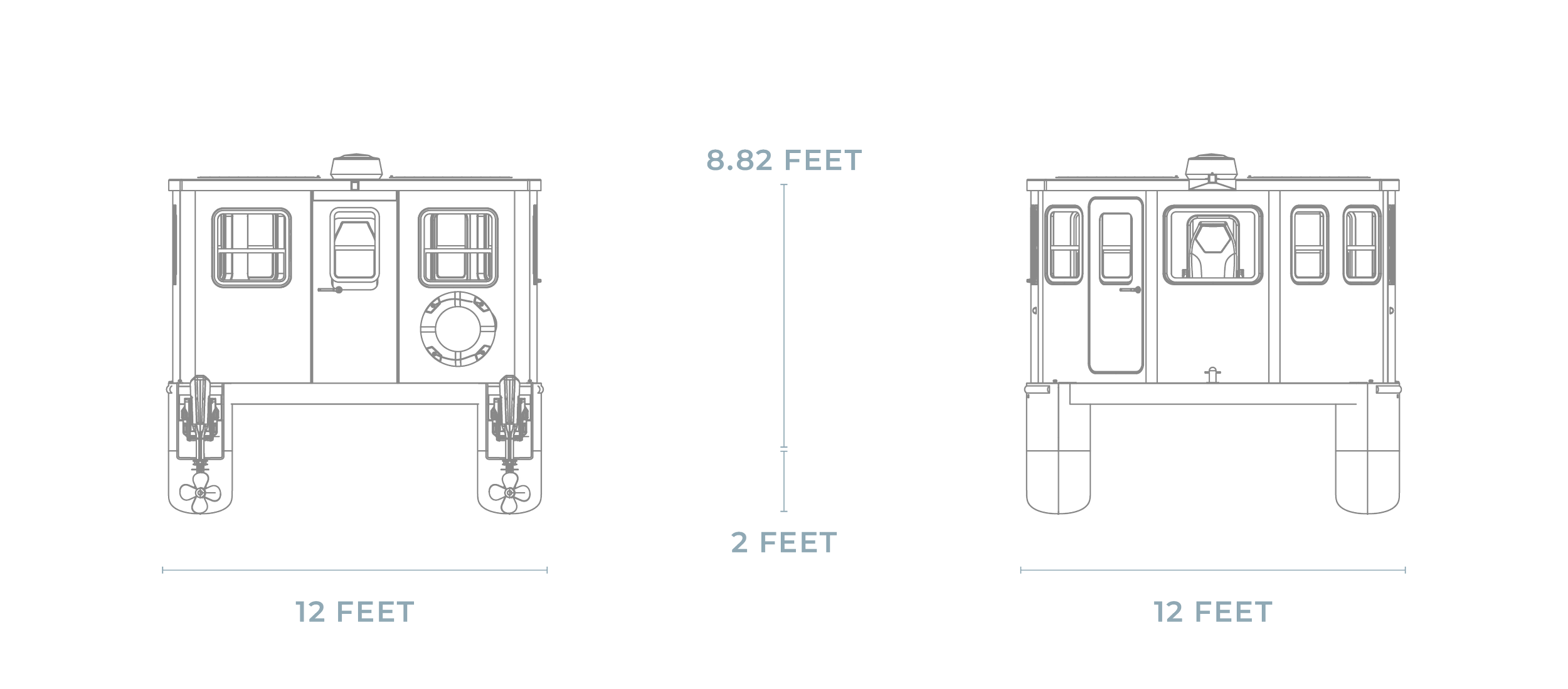

Length | 40 ft (12.2 m)
Beam | 12 ft (3.66 m)
Draft (fully laden) | 2 ft (0.61 m)
Cabin Size (avail with or without sliding windows) | 25.5 x 11.5 ft (7.8 x 2.7 m)
Passengers | 16 (seating for all)
Crew | 2
Top Speed | 16 knot
Motor Power (max) with different options | 50HP x 2
Wheelchair/scooter space | 2 or 2 convertible/folding seats
Bicycle/baggage space | Up to 6 bikes or 16 rolling carry-on bags if no wheelchairs
Bathroom (optional) | Cassette toilet in 36” x 42” (0.9 x 1.07m)
Construction | Carbon fiber epoxy infusion
Propulsion | Twin, fully independent electric motors
Operation and Charging | Continuous onboard solar charging + AC Dock charging (various speeds)
Range
Sunny
16 passengers
149 NM @ 6 kt
105 NM @ 7 kt
79 NM @ 8 kt
37 NM @ 10 kt
29 NM @ 12 kt
cloudy
16 passengers
129 NM @ 6 kt
87 NM @ 7 kt
69 NM @ 8 kt
32 NM @ 10 kt
25 NM @ 12 kt
