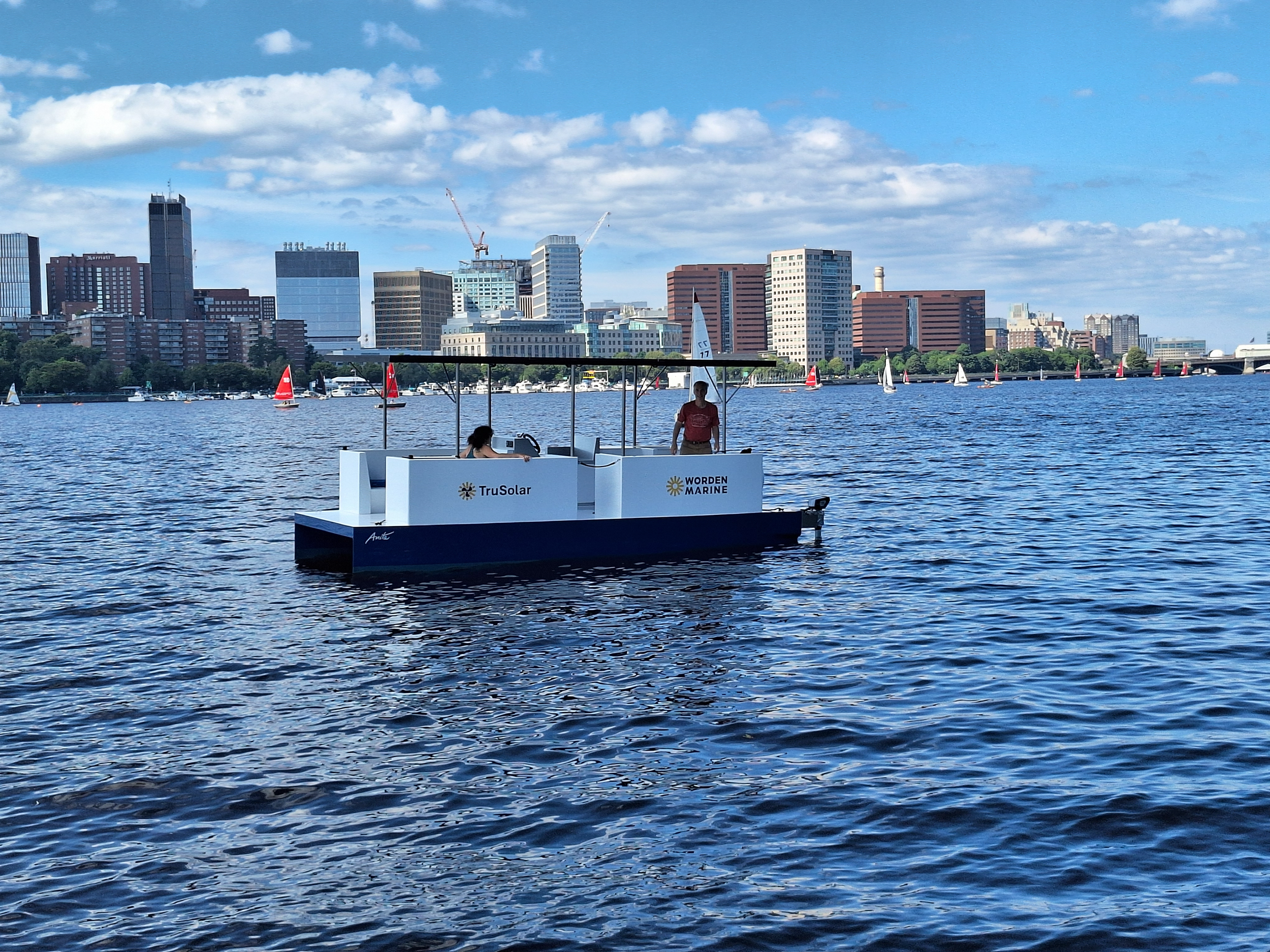

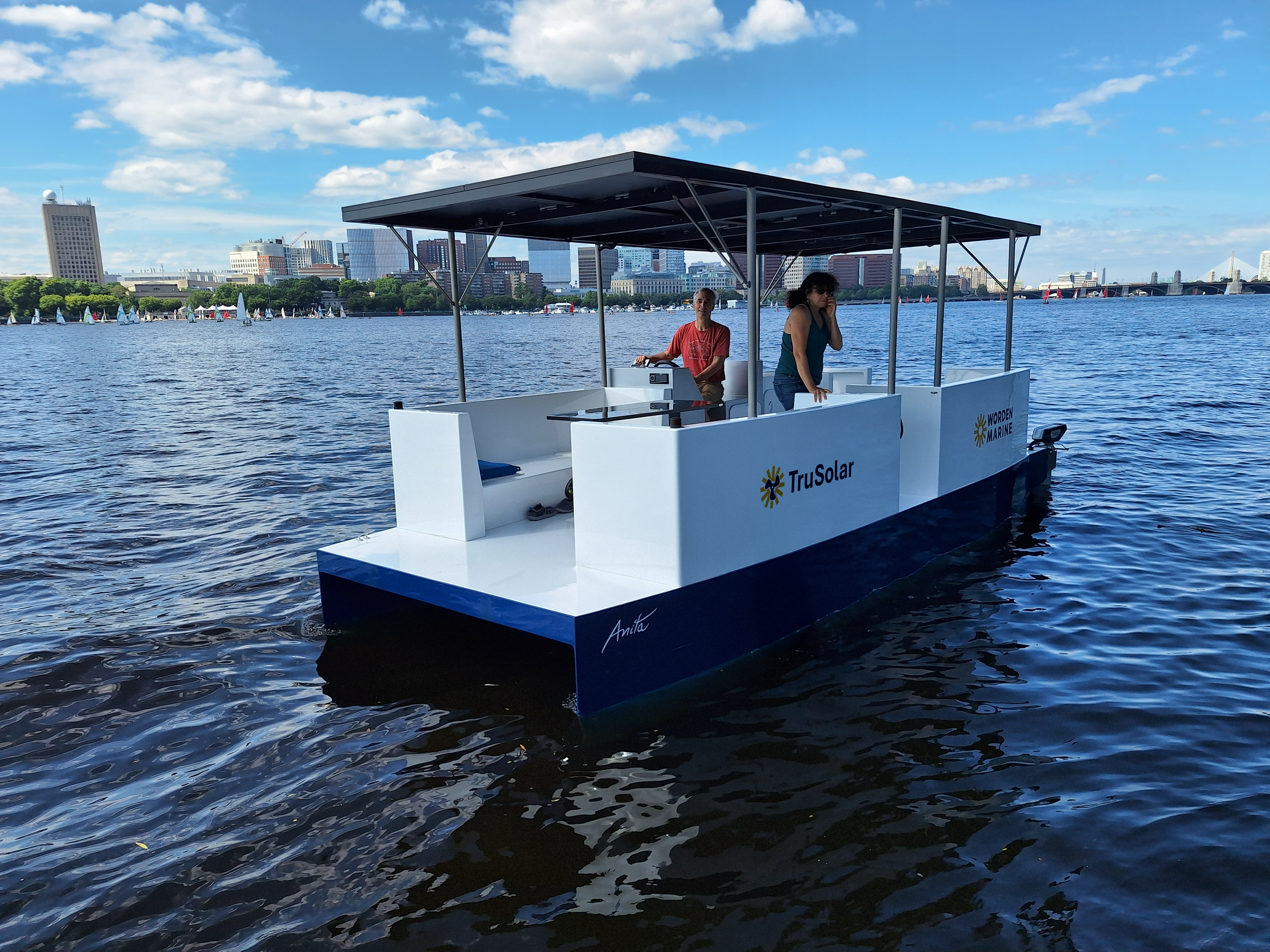

TruSolar20
20’ vessel of new premium solar-electric design. Ideal for pleasure boating and small commercial uses.
The TruSolar20 is constructed with a sleek design and with state-of-the-art technology. The lightweight materials and robust battery system provides 10 knots of speed producing minimal wakes. These vessels can be customized for your tastes, color preferences and personal needs. Extensive testing has been conducted on this vessel to refine the design and systems and to optimize the performance and efficiency.
Specifications

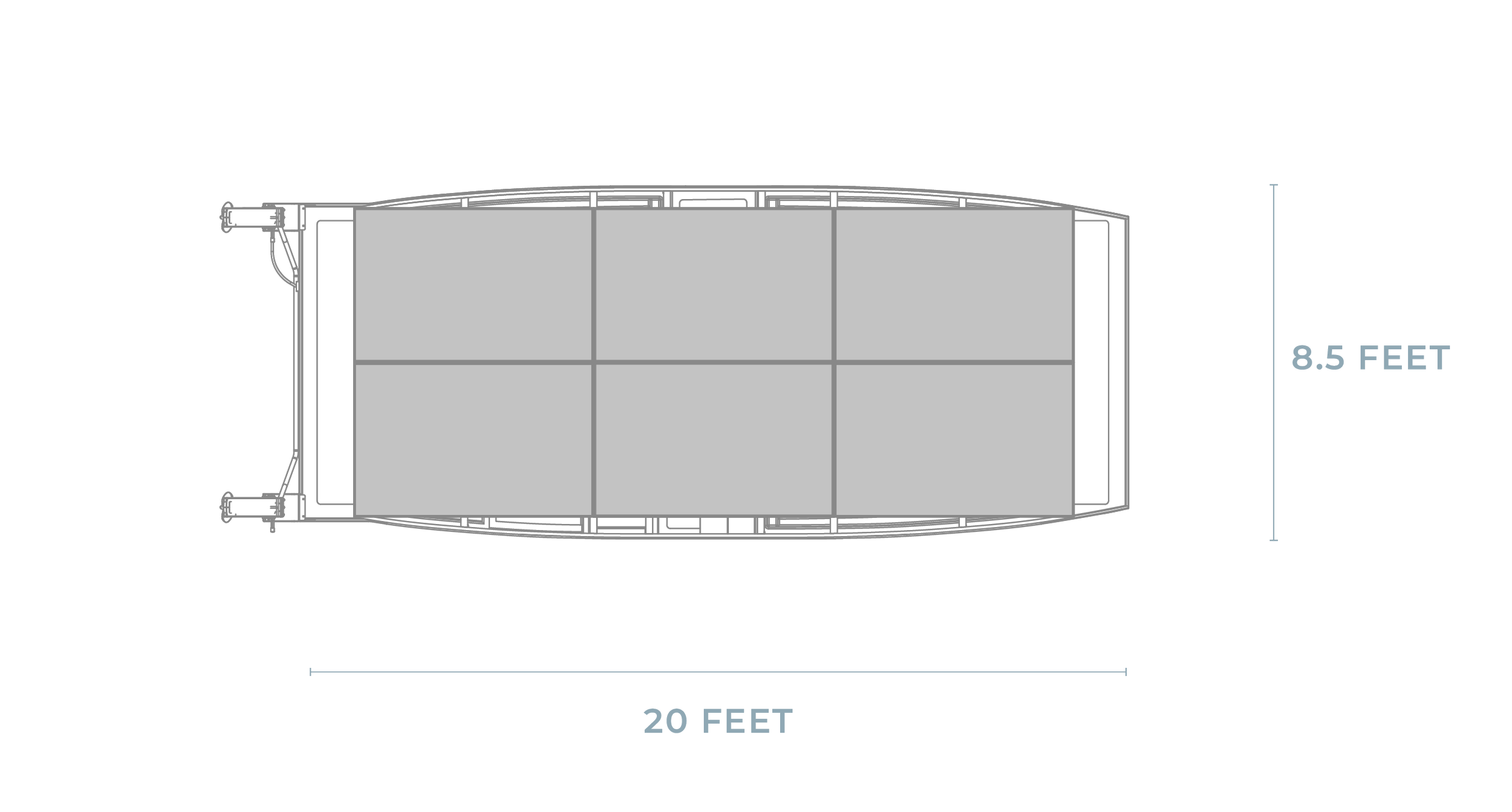

Length | 20 ft (6.1 m)

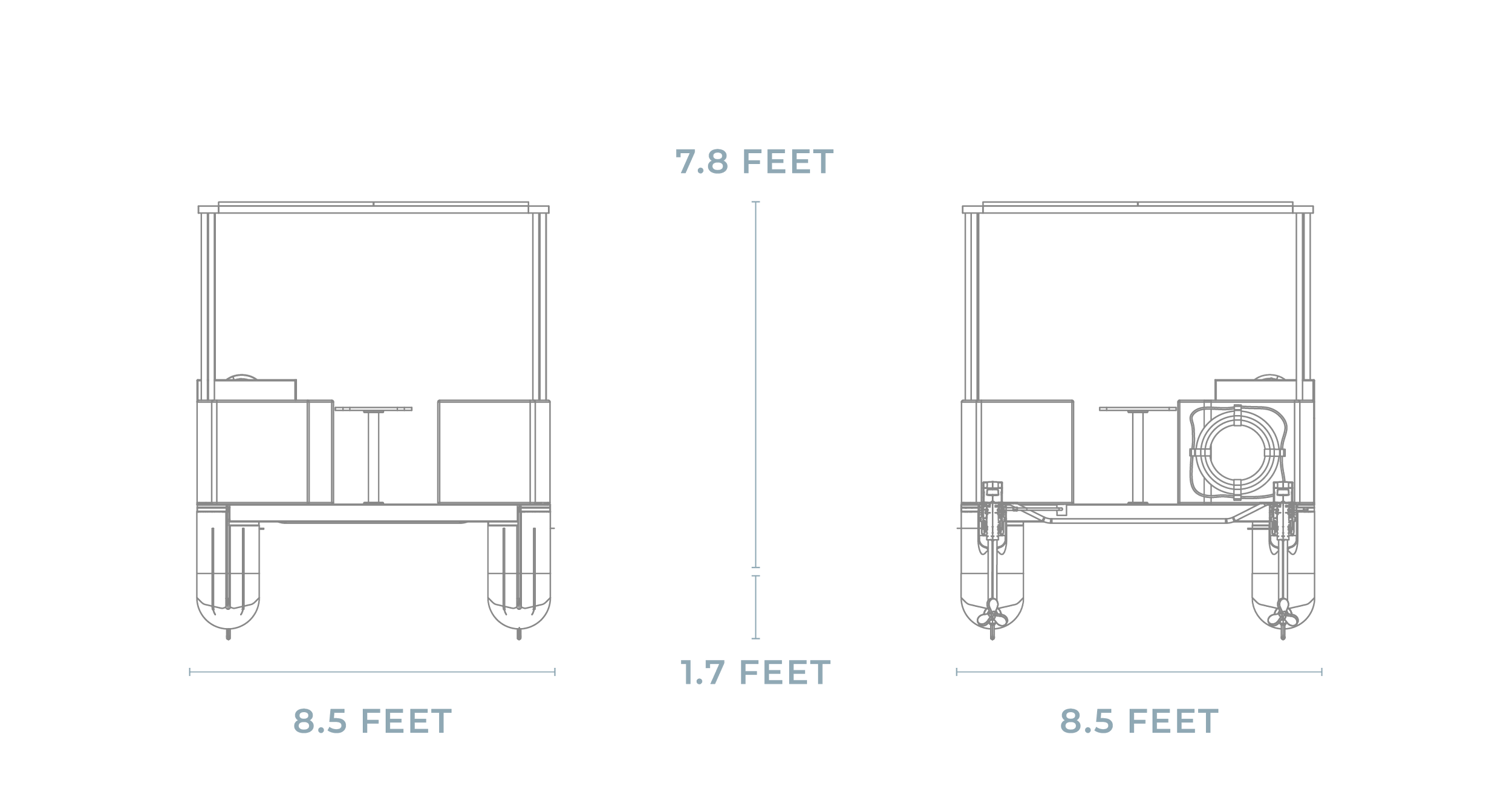

Beam | 8.5 ft (2.59 m)
Draft (fully laden) | 1.5 ft (0.46 m)
Cabin Size (avail with or without sliding windows) | 16 x 8.5 ft (4.8 x 2.7 m)
Passengers | 8 (seating for all)
Helm | Amidship starboard side
Top Speed | 10 knot
Motor Power (max) with different options | 10 HP x 2
Bathroom (optional) | Up to 6 bikes or 16 rolling carry-on bags if no wheelchairs
Bathroom (optional) | Cassette toilet in 33” x 39” (0.8 x 1m)
Construction | Carbon fiber epoxy infusion
Propulsion | Twin, fully independent electric motors
Range
Sunny
8 passengers
115 NM @ 5 KTS
67NM @ 6 KTS
35 NM @ 7 KTS
26 NM @ 8 KTS
Cloudy
8 passengers
86 NM @ 5 KTS
52 NM @ 6 KTS
26 NM @ 7 KTS
20 NM @ 8 KTS
